System Record Documents (SRD)

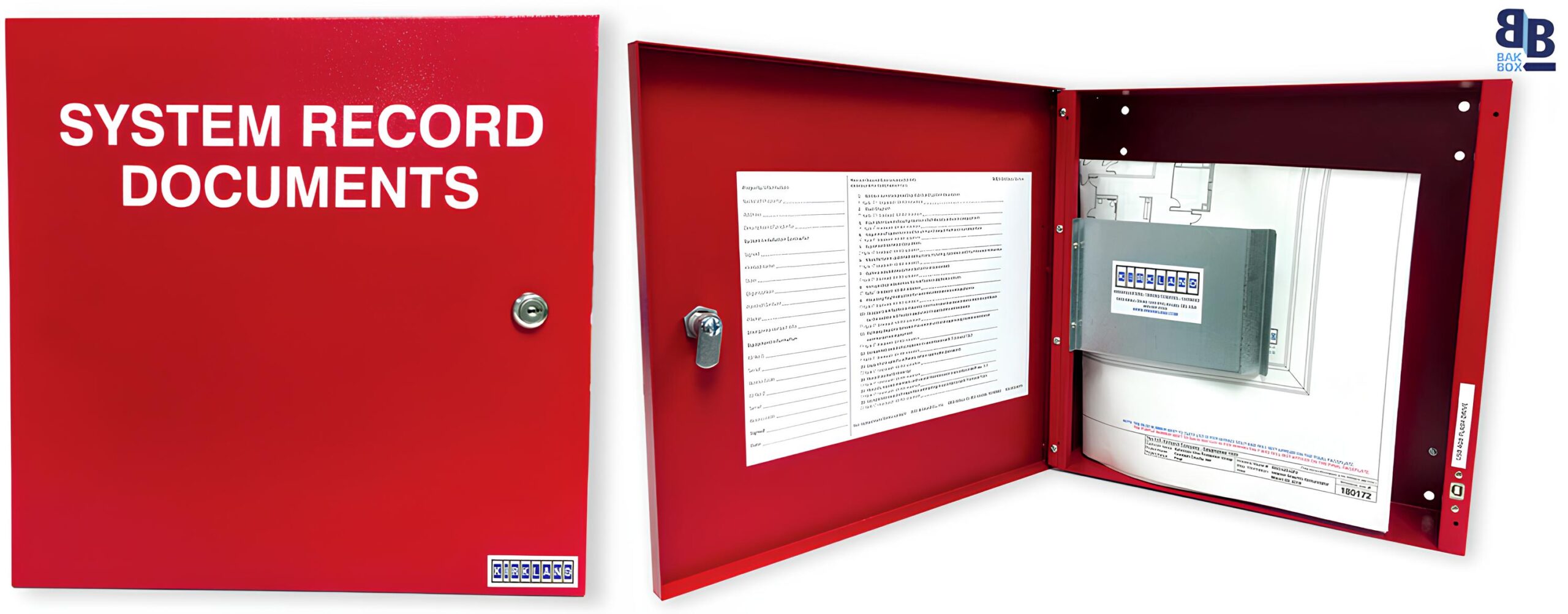

The System Record Documents (SRD) from the BAKBOX SERIES is the perfect item to meet demanding code requirements. NFPA 72 2013 7.7.2.5 states that a cabinet must be “prominently labeled ‘SYSTEM RECORD DOCUMENTS’. NFPA 72 2013 7.7.2.1 states, “With every new system, a documentation cabinet shall be installed at the system control unit or other approved location at the protected premises.” This durable #18 gauge steel enclosure with a stainless steel piano hinge and key lock keeps your code-required documents, including but not limited to, test and inspection, service and system records, and manuals. In addition, a 4GB USB flash drive safely and securely stores your fire alarm software, eliminating occurrences of the software not being on-site when technicians arrive to service the system. Using a standard USB B connector you may also store records electronically (See NFPA 72 2013 7.5.6.7). The SRD is designed with a plan clip to keep your documents secured. The inside cover has a recordkeeping log for identifying equipment information and required documentation locations (See NFPA 72 2013 7.2.1).



  • Installed with 4GB digital flash drive with USB B connector
  • Durable powder coat baked-on finish
  • Permanently screened (1″h white ink) “SYSTEM RECORD DOCUMENTS”
  • The best delivery of finished product in the business…guaranteed!
  • Legend sheet for documentation, passwords and system information.



Material

Boxes: #18 Gauge Steel with a Red Textured Finish (Standard).
Door: #18 Gauge Steel with a Red Textured Finish (Standard).
Hinge: Concealed Stainless Steel Piano Hinge.
Fastener: Standard 3/4” Cat 30 Key Lock (Other Lock Assemblies Available).

Backbox Depth

3.25″
Surface: 14.25″w x 14.25″h

Download Now

Typical Part Number

MB3001
