Firefighters’ Smoke Control Station (UUKL)

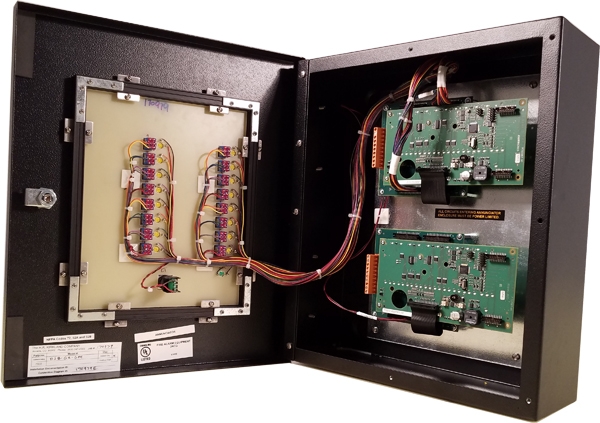

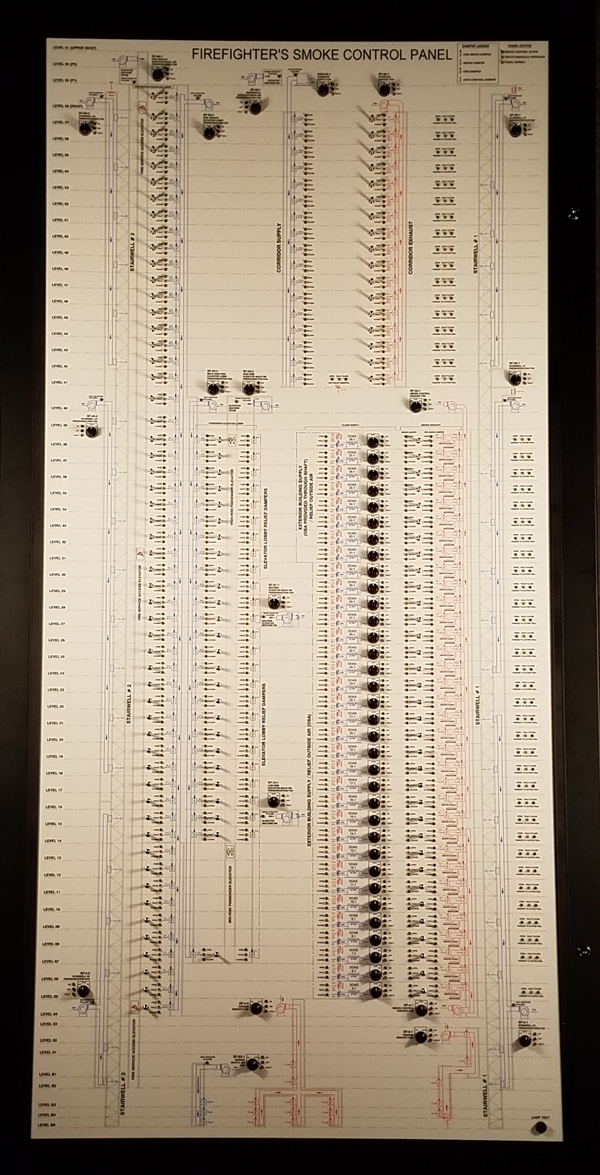

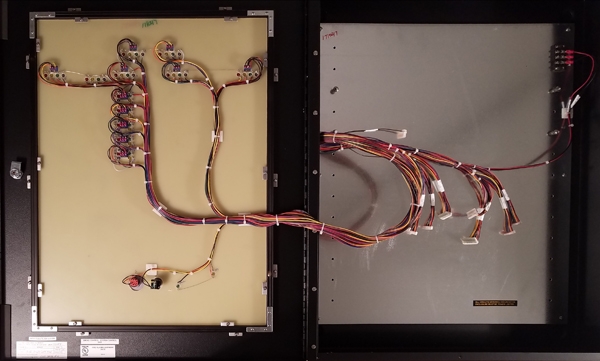

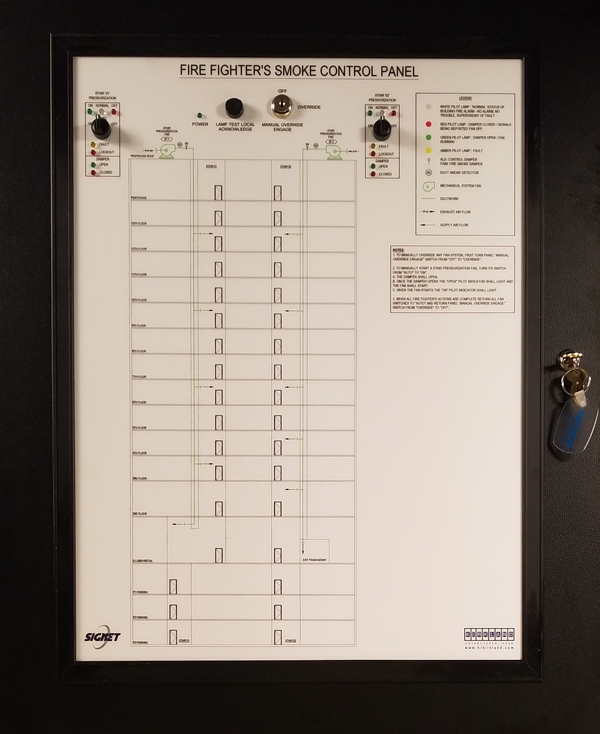

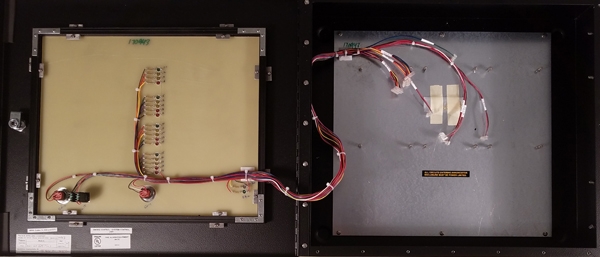

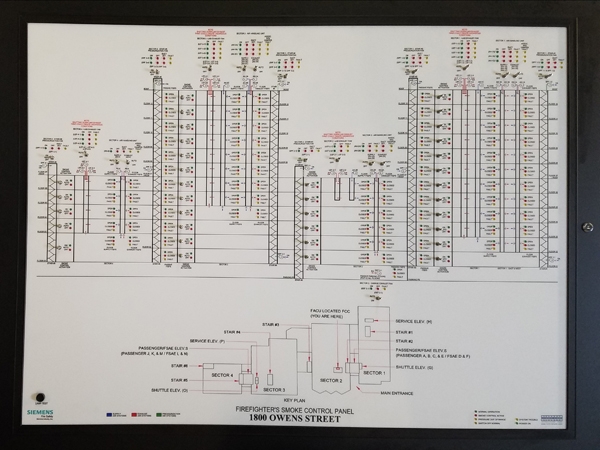

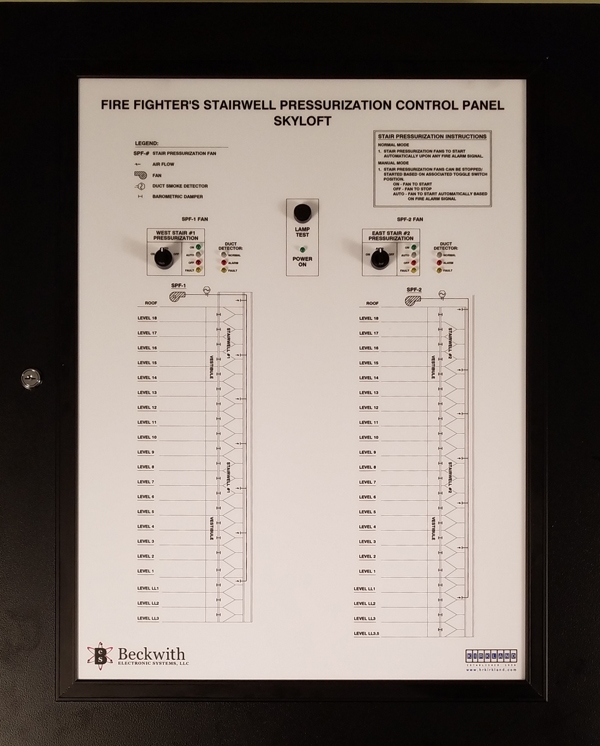

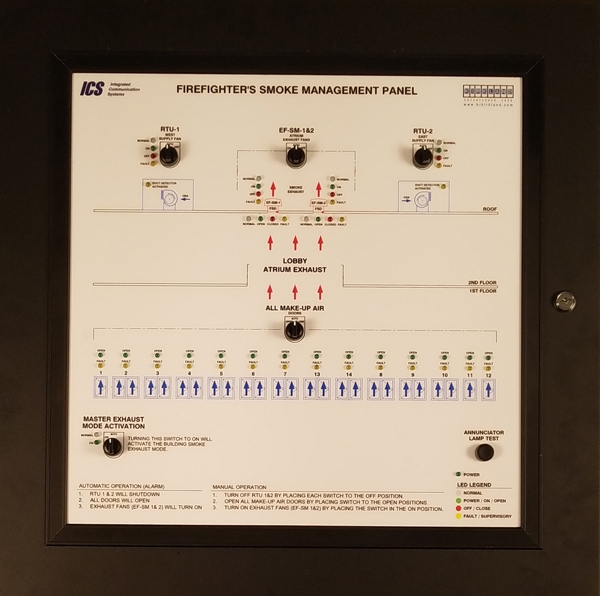

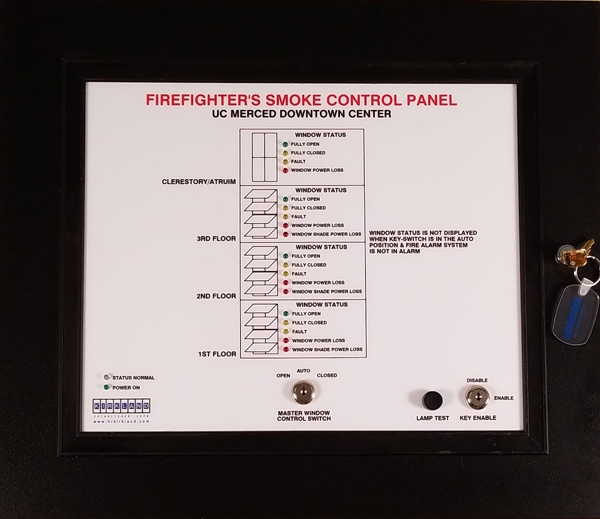

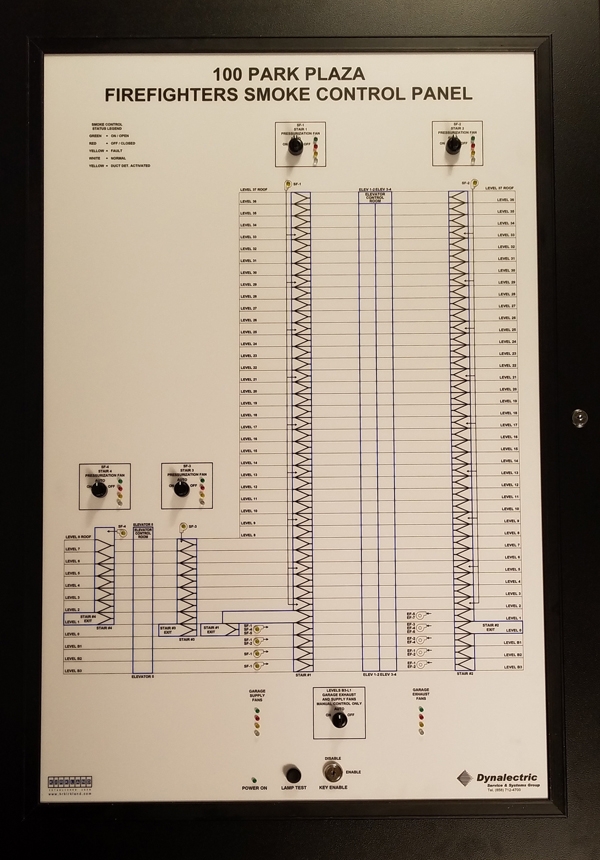

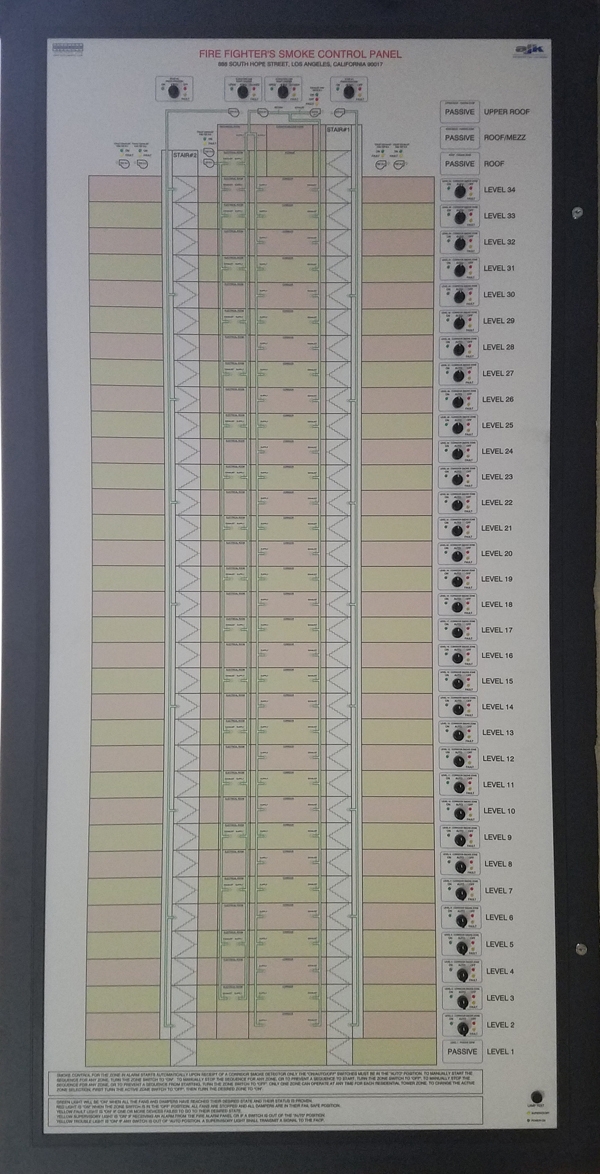

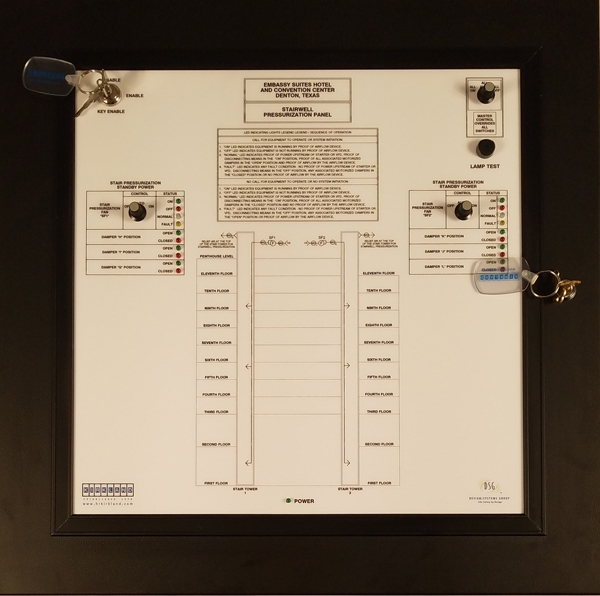

The Firefighters Smoke Control (FSCS) panel allows a fireman to control the flow of air in a building, in a fire situation. The Smoke Control panel can have switches for the various fans and dampers within a building. It is most commonly used in high rise buildings. Accompanying the switches, there are normally status Leds, which show the position of the damper or fan switch. The Smoke Control display is most often seen depicted as a riser, showing the building levels and stairwells. The design of the FSCS is normally driven by code and/or the AHJ.

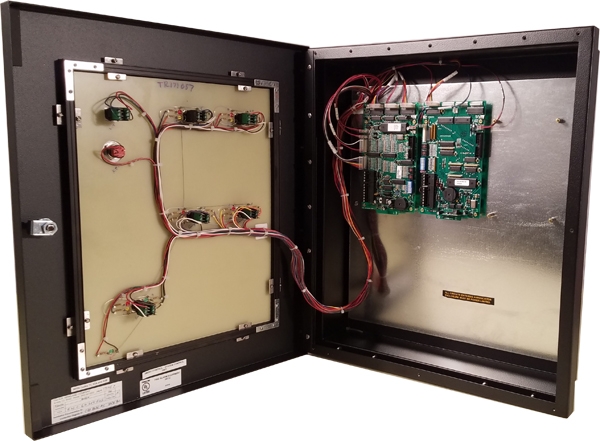

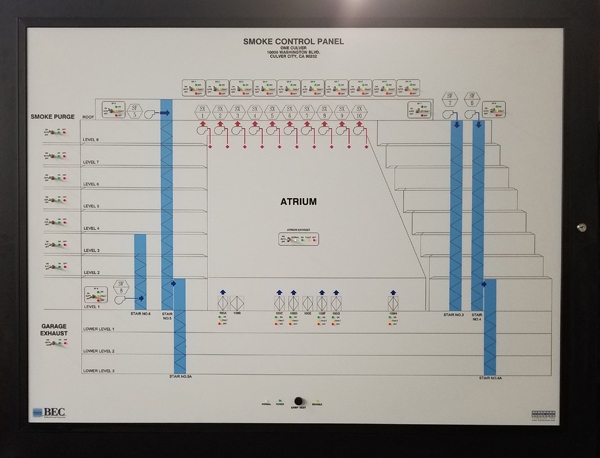

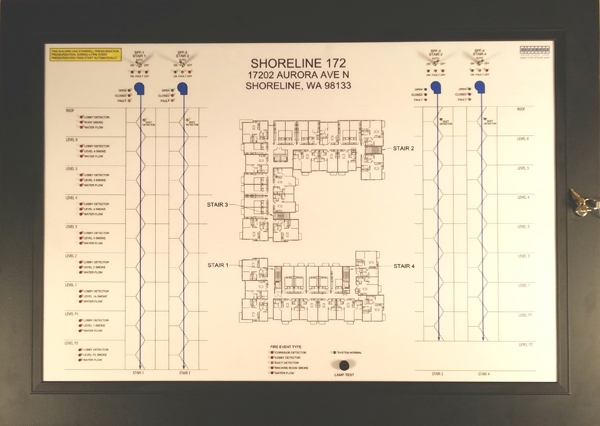

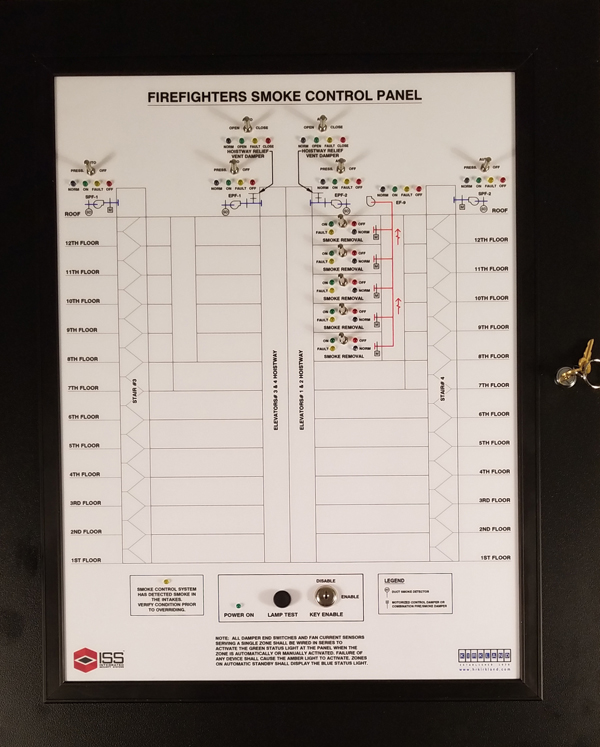

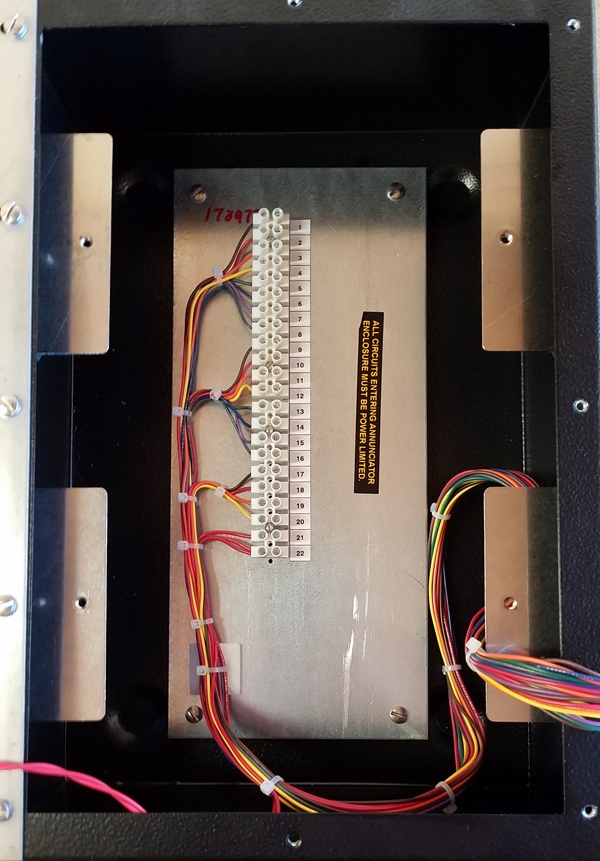

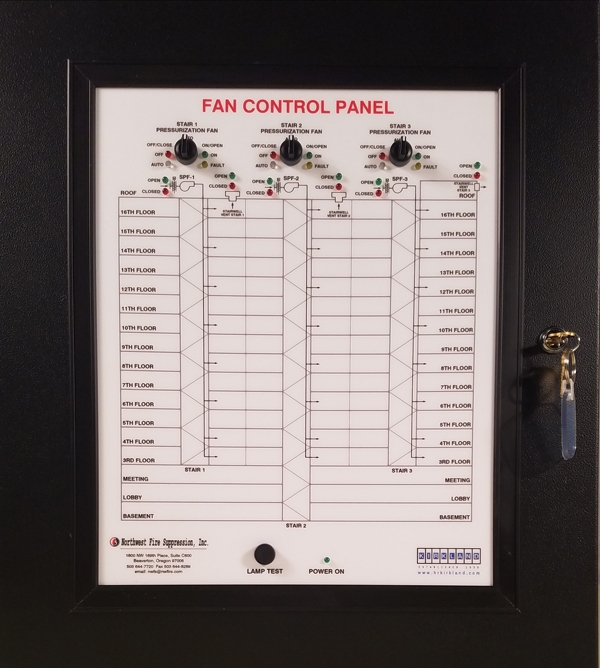

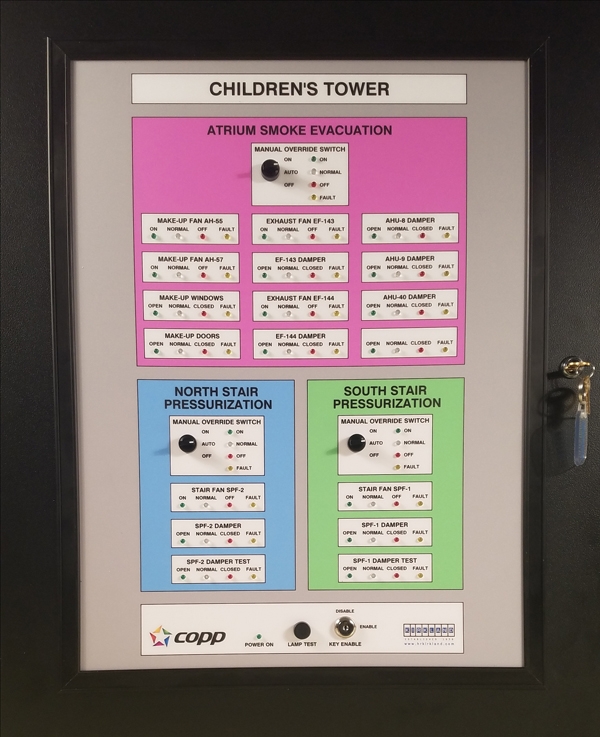

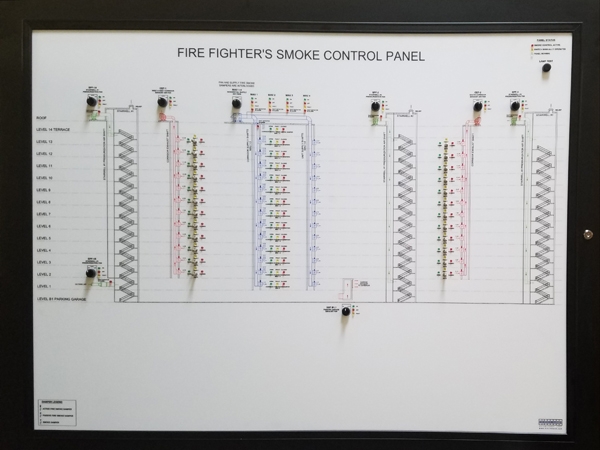

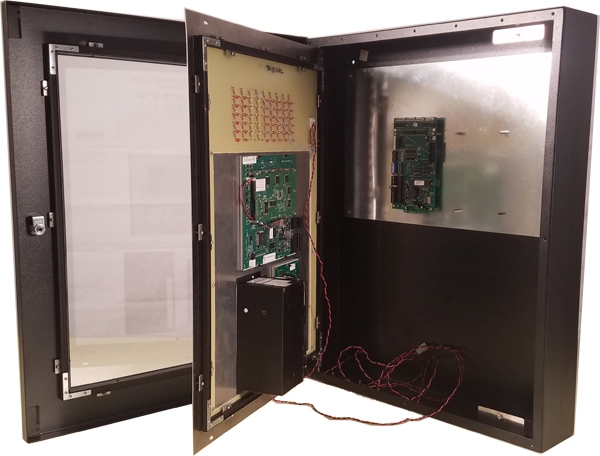

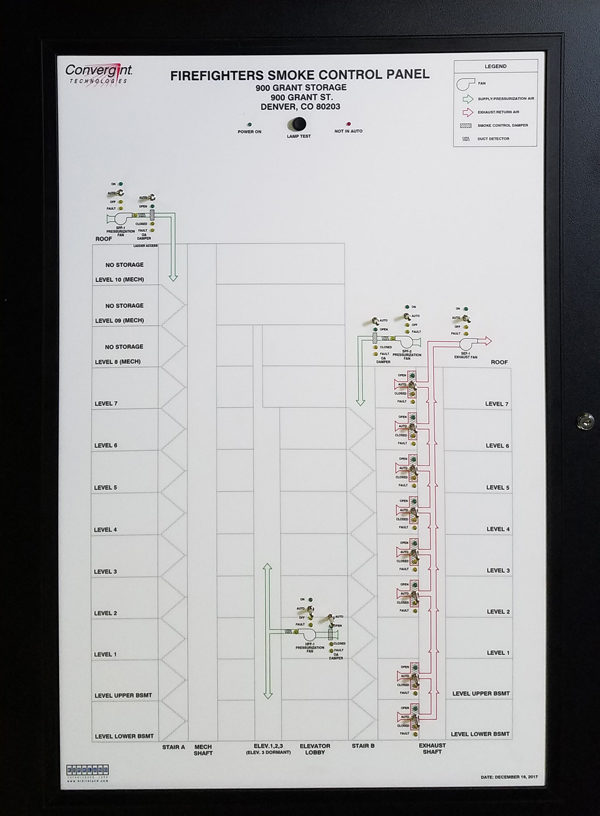

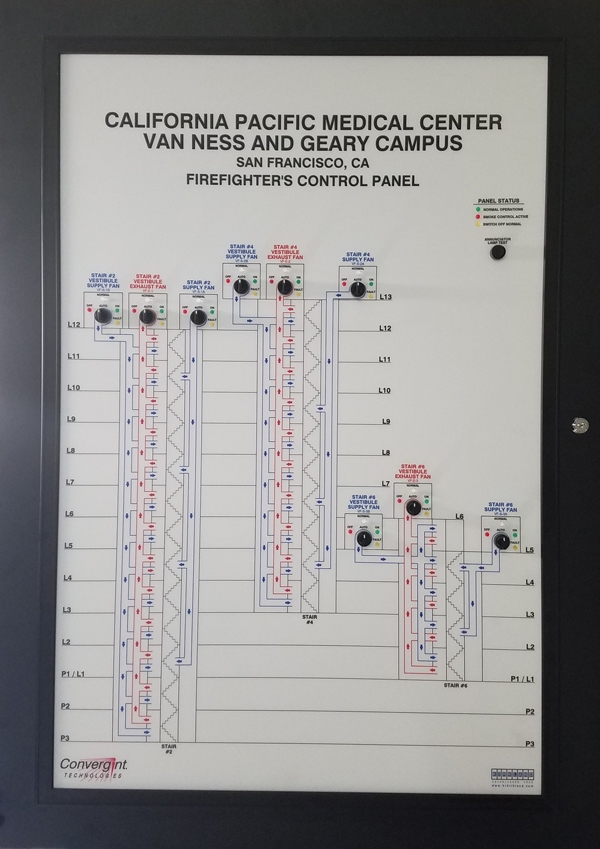

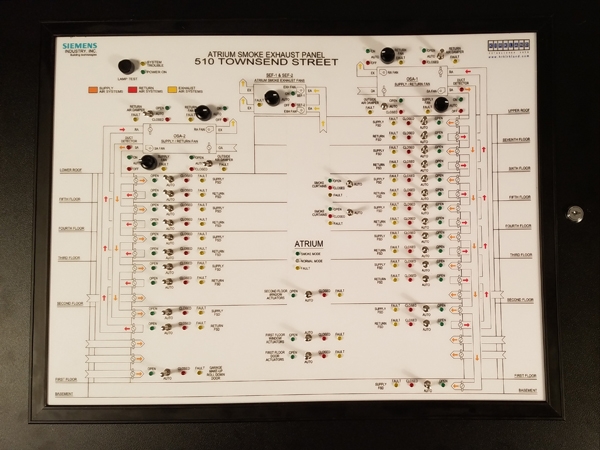

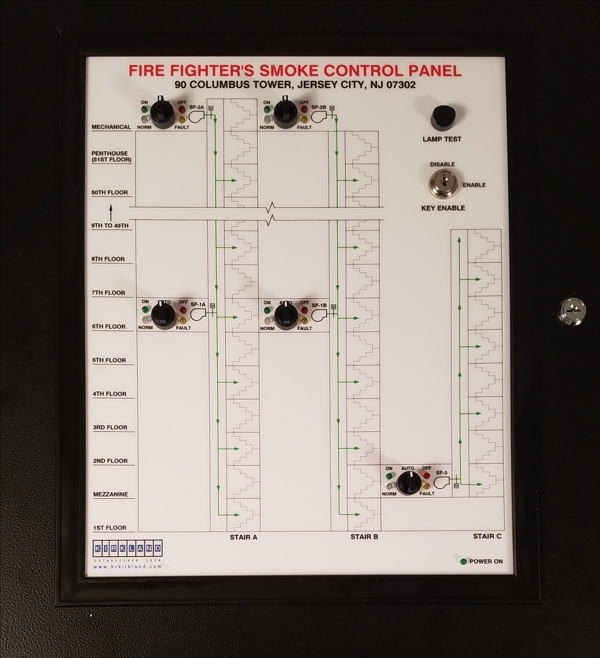

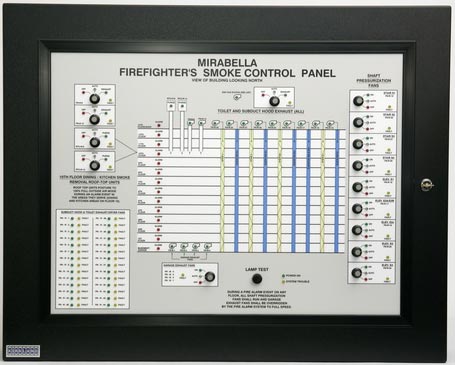

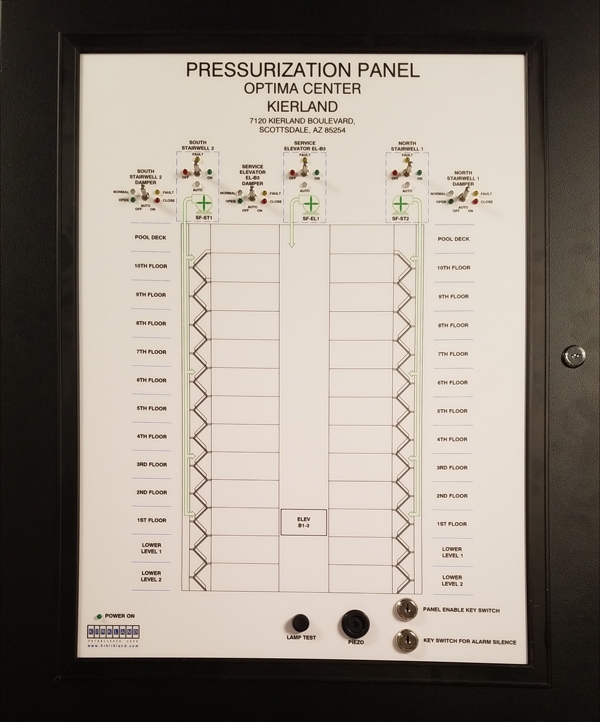

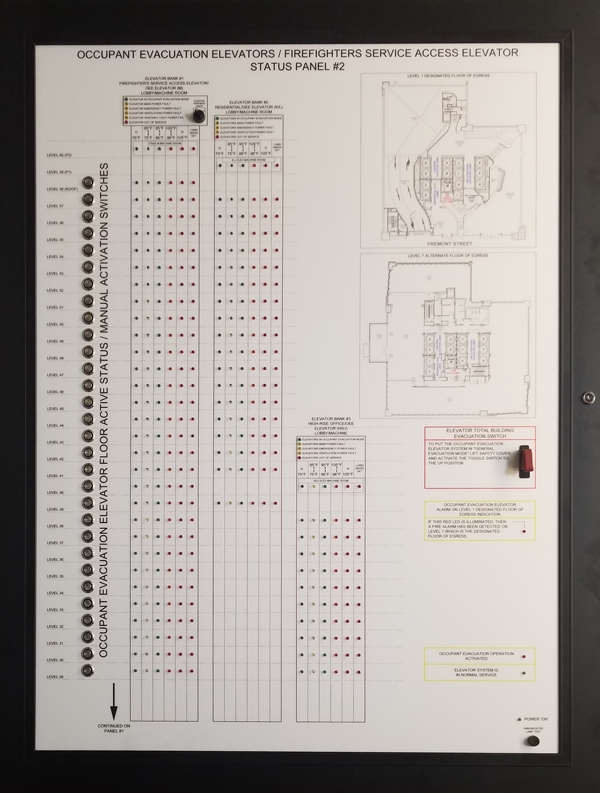

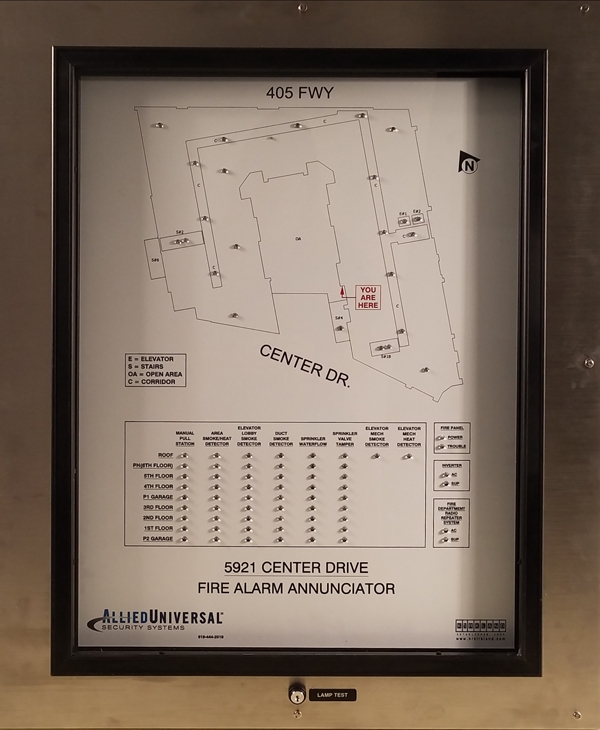

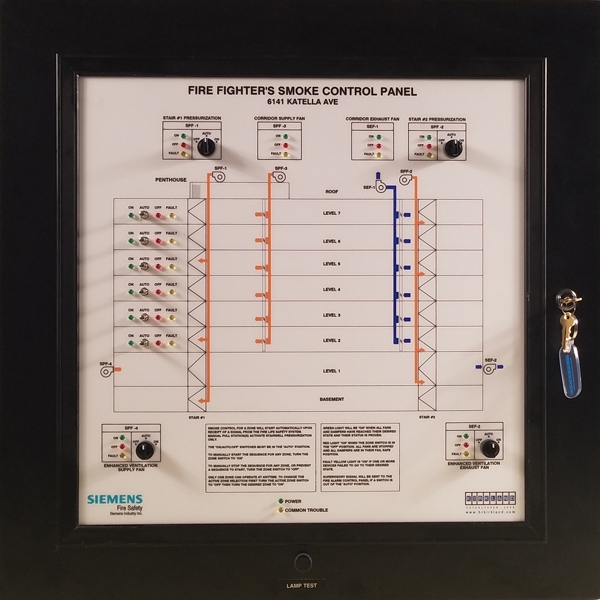

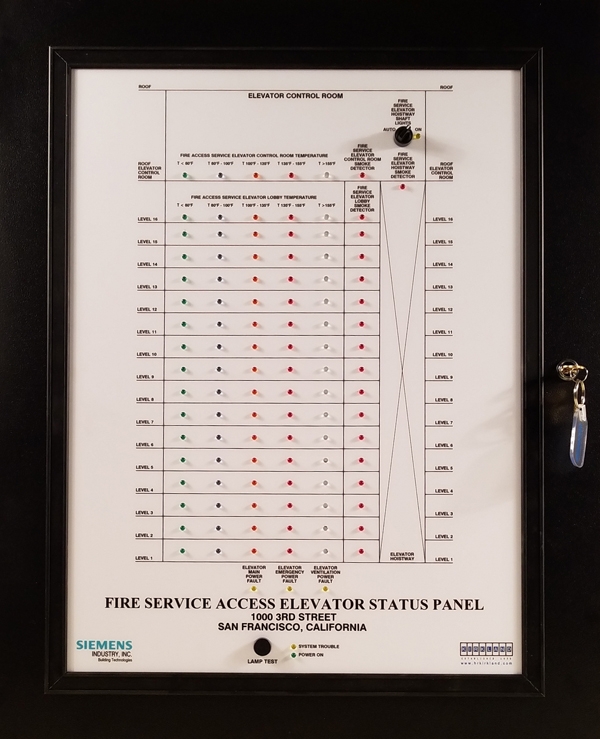

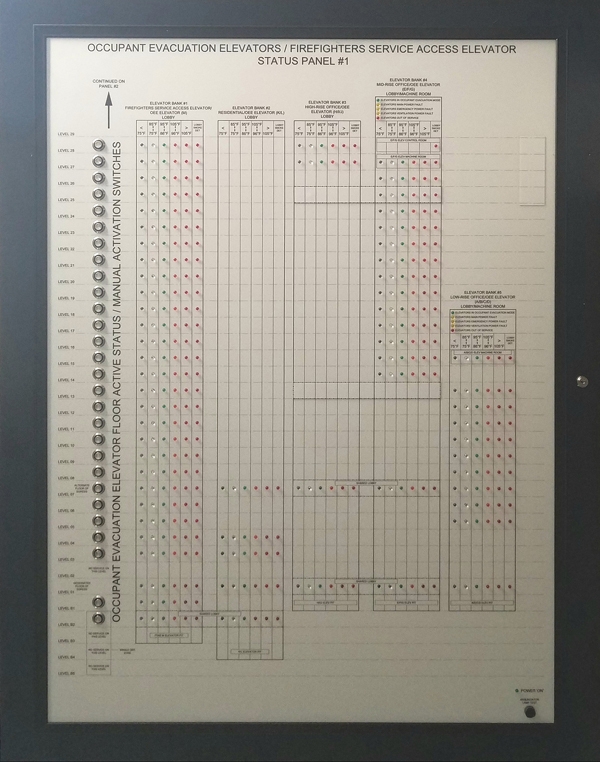

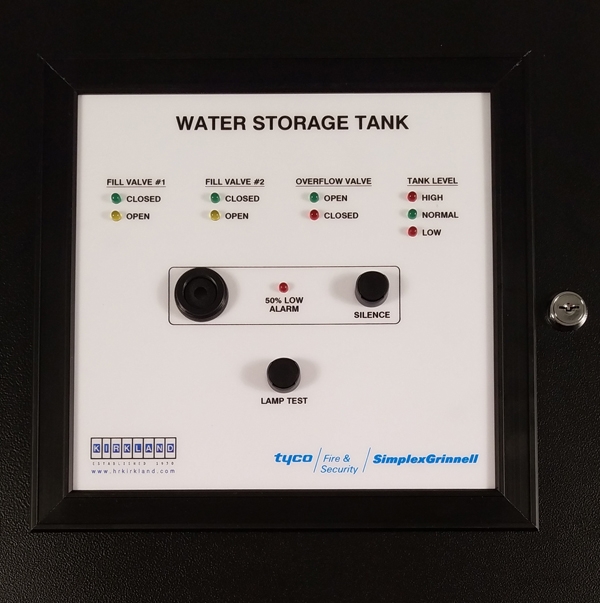

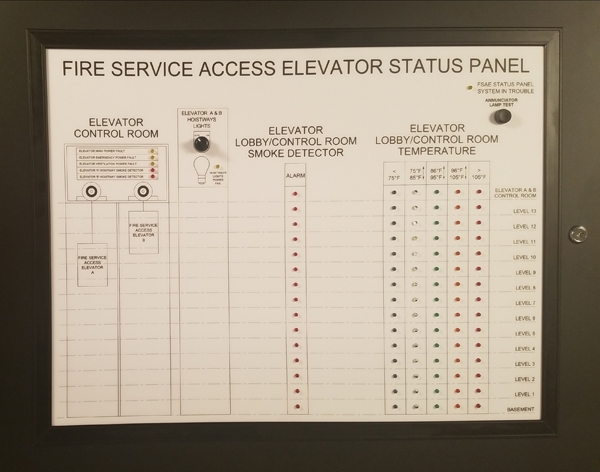

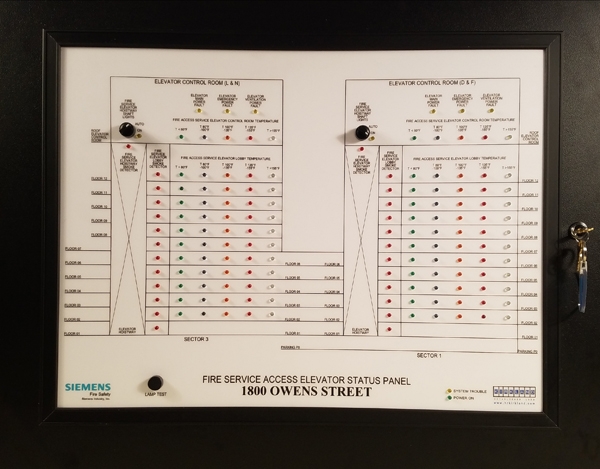

Kirkland specializes in Fire Alarm Graphic Design, having an exceptional drafting department, and Graphic Display methods, that allow for a clear, concise illustration of the layout, including using full color graphics. Using full color graphics assists the fireman in identifying the flow of air, showing the exhaust flow line in red, and pressurization/supply in green. There is no additional charge for colors utilized in the display, with unlimited colors to choose from.

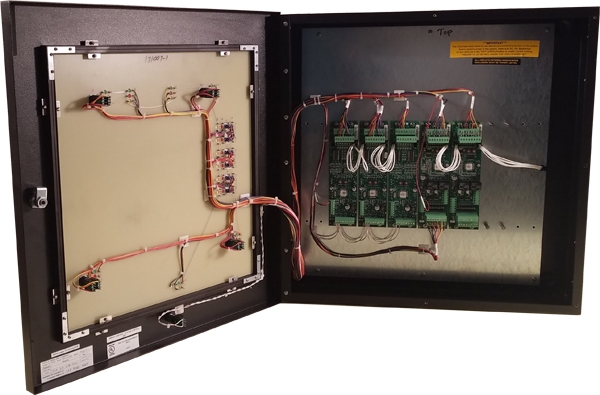

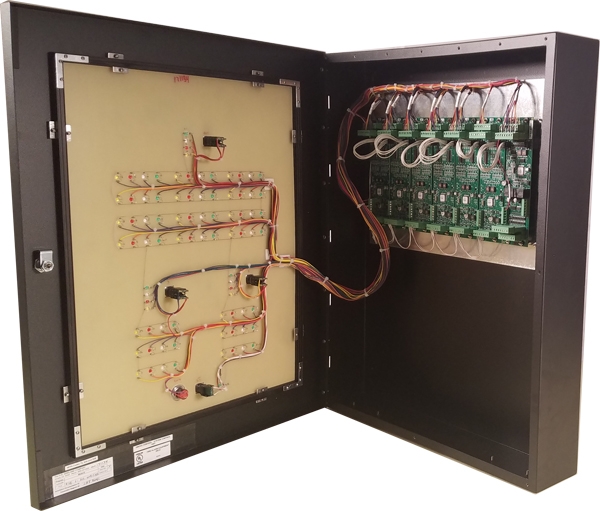

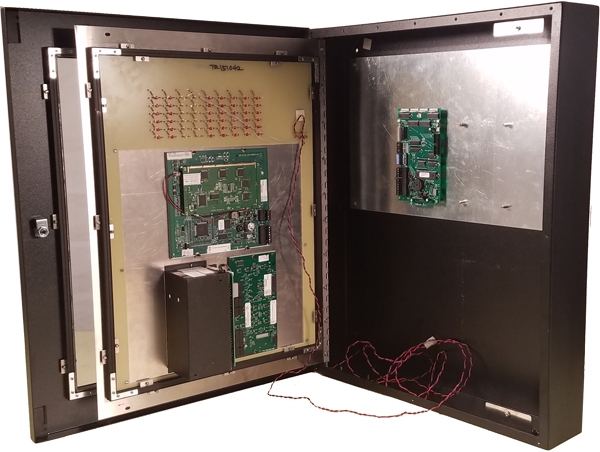

Kirkland offers a wide range of large enclosures, which accommodate the normally large size of the FSCS panels. Our largest standard UUKL panel is 79.5”w x 40.5”h!

FIREFIGHTERS' SMOKE CONTROL STATION (UUKL)

Enclosures are constructed of cold rolled steel with fully welded and grounded seams and painted with a black powder textured coat for a truly finished appearance.
A variety of display materials are available. Standard is UL94VO flame retardant grade lexan, laminated to CNC punched aluminum. Anodized aluminum and stainless steel displays are also available. A dry erase coating can be applied to the display face, when required.
Full color graphics at no additional charge.
The best delivery of finished product in the business…guaranteed!

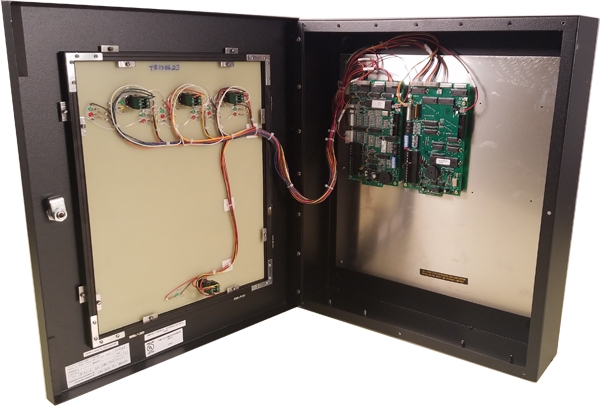

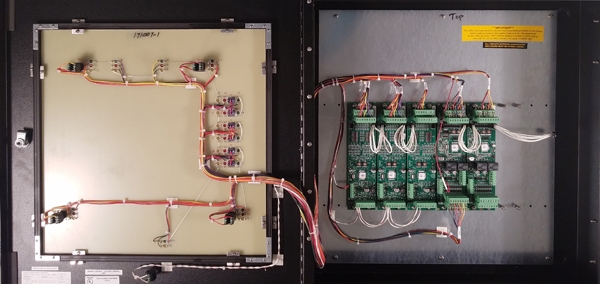

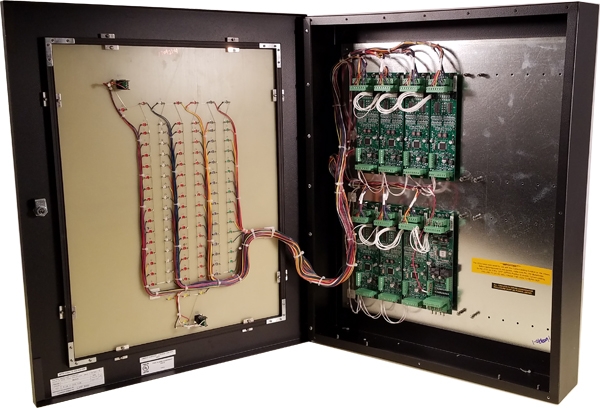

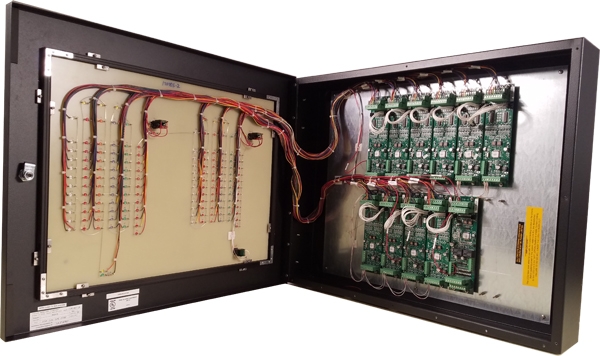

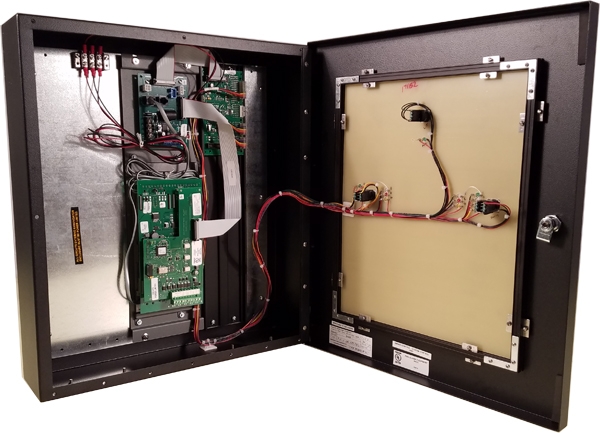

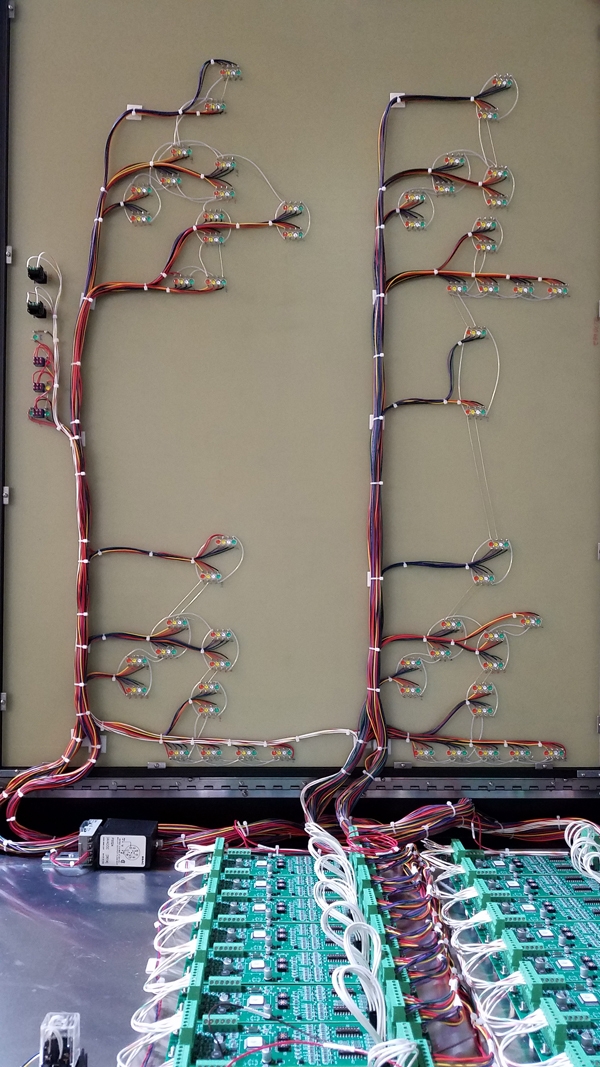

Can be wired directly to fire alarm lamp driver modules or hardwired to terminals.
UUKL and CSFM listed.
The following Kirkland panels are qualified by the ICC Evaluation Service to ACC156 seismic criteria: RSE-GR-GP4, RSE-L-GR-GP4, RSF-GR-GP4, RSF-L-GR-GP4, RSG-GR-GP4, RSG-L-GR-GP4. OSHPD seismic certification number is OSP-0139-10

Material

Boxes: #16 Gauge Steel with a Black Textured Finish (Standard).
Door: #16 Gauge Steel with a Black Textured Finish (Standard), or #16 Gauge Stainless Steel with a #4 Horizontal Brush upon request.
Hinge: Concealed Stainless Steel located on the left side.
Fastener: #2171 Key change lock.

Backbox Depth

Semi-Flush: 3.50″
Surface: 4.75″

The FSCS panel shall be UUKL listed and conform to NFPA-92A guidelines.

The enclosure shall be constructed of cold rolled steel with welded and ground seams and finished with a black powder textured finish. The annunciator door shall have a concealed stainless steel piano hinge and the door shall be finished with a black powder textured finish or brushed stainless steel as directed by the engineer. The door shall be fastened with a key lock with no other fasteners visible. The graphic display shall consist of a lamination of an aluminum substrate with a reverse printed polycarbonate overlay. The graphic must have full color capacity to show different colors for supply, exhaust, and pressurization. A velvet texture finish must be applied to the polycarbonate face to eliminate glare. LEDs shall protrude through the laminate for 180 degrees visibility. They shall be wired to designated terminals for interface with customer’s remote controllers. AHU Switches must be UL recognized components with a minimum rating of 24 VDC/AC, 1amp. They shall be wired to designated terminals for interface with customer’s remote controllers. The panel must include a Key Enable Switch and a Lamptest Switch.

Information Required

Backbox Mounting: Surface or Semi-flush mount
Wiring: Hardwired – Please provide voltage and feed. Drivers – Please provide model number of FACP and driver model number
Options: Replaceable Legends SS – Stainless Steel Door Stainless Steel Door – standard on RSF and RSF-L Dry Erase Coating Power on LED Switches– The switches listed below are kept in stock. Others are available to order. (See Switch Data Sheets for diagrams and pricing.)

Download Now

Stock Switch Options

TOGGLE SWITCHES: MINIATURE (PULL HANDLE TO OPERATE)


ES2001	3 Position	ON-OFF-ON	1 Pole	Maintained
ES2002	2 Position	ON-ON	2 Pole	Maintained
ES2004	3 Position	ON-ON-ON	1 Pole	Maintained

16 MM SELECTOR SWITCHES


ES4000	3 Position	ON-OFF-ON	1 Pole	Maintained
ES4006	2 Position	ON-ON	1 Pole	Maintained

16 MM KEY SWITCHES


ES4008	3 Position	ON-OFF-ON	1 Pole	Maintained
ES4007	2 Position	ON-ON	1 Pole	Maintained

16MM PUSHBUTTON SWITCH


ES4002	2 Position	ON-ON	1 Pole	Momentary

22MM SELECTOR SWITCHES


ES3006	3 Position	ON-OFF-ON	1 Pole	Maintained
ES3005	2 Position	ON-ON	1 Pole	Maintained

22MM KEY SWITCHES


ES3004	3 Position	ON-OFF-ON	1 Pole	Maintained
ES3003	2 Position	ON-ON	1 Pole	Maintained

22MM PUSHBUTTON SWITCH


ES3008	2 Position	ON-ON	1 Pole	Maintained

KEY SWITCHES (CHROME FINISH) .912 DIA


ES1061	2 Position	ON-ON	1 Pole	Maintained
ES1062	3 Position	ON-ON-ON	1 Pole	Maintained
ES1063	2 Position	ON-ON	1 Pole	Momentary
ES1059 (KEY ENABLED)	2 Position	OFF-ON	1 Pole	Maintained

KEY SWITCH (CHROME FINISH) .912 DIA LAMPTEST MATCHING KEY WITH DOOR LOCK


ES1004	2 Position	OFF-ON	1 Pole	Momentary

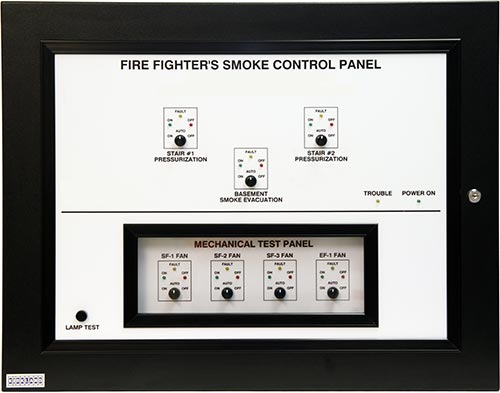

GRAPHIC METHOD GP-4

Available in full color at no additional charge.
Available with dry erase coating.
Rigidity of the panel allows its use on display in a range of 1-15 square feet.
Ideal for Control Panels (FSCS), as Switches are mounted in the display.

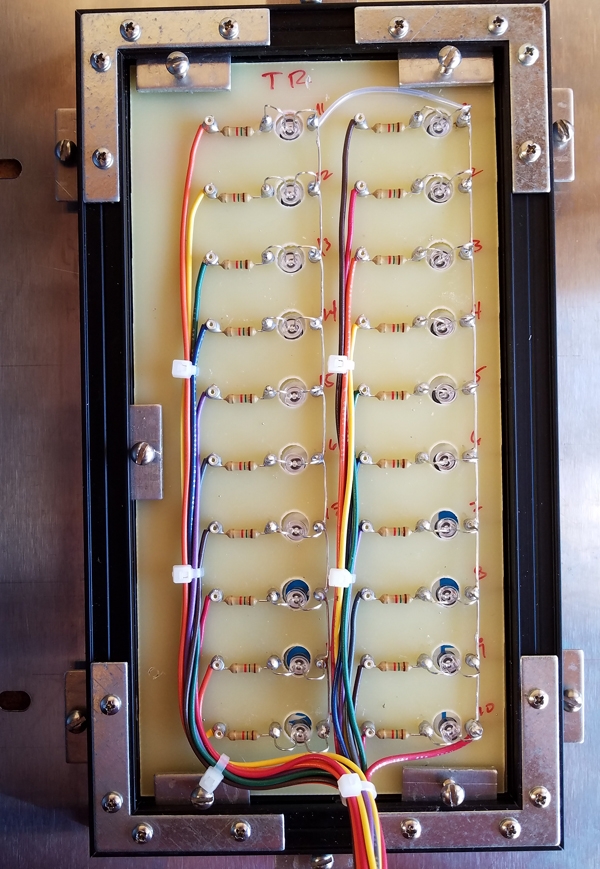

Leds and Switches mount through holes in the display. Dead Front (DF) display is available, thereby making the Leds tamperproof.
Lamination consists of a velvet textured polycarbonate face, a reverse printed image and a 1/8” aluminum backing. The display is printed with pigmented inks, for long life, on UL94VO flame retardant grade lexan. A dry erase coating is available.
Display is a full color electronically printed lamination designed for Leds, Switches and/or customer supplied LCD.
The annunciator enclosure shall be constructed of cold rolled steel with welded and ground seams for a finished appearance. The backbox shall be finished with a black powder coating. The annunciator door shall have a concealed piano hinge and shall be finished in a black powder coating, or stainless steel as directed by the engineer. The door shall be secured by a key lock with no other fasteners visible.The display shall consist of reversed printed polycarbonate lexan laminated to aluminum, with a full color image. The LED and switch wiring shall be neatly harnessed to designated terminal blocks located in the annunciator backbox. The manufacturer shall submit drawings for approval prior to fabrication. The annunciator shall be Underwriters Laboratories listed. The annunciator shall be manufactured by the H.R. Kirkland Co. or approved equal.

GRAPHIC METHOD GP-6

Additional charge for colors.
The clear front pane is omitted to allow for switches in the display.
Leds mount through holes in the display.
Display is a black screened image on clear anodized brushed aluminum or stainless steel.
The annunciator enclosure shall be constructed of cold rolled steel with welded and ground seams for a finished appearance. The backbox shall be finished with a black powder coating. The annunciator door shall have a concealed piano hinge and shall be finished in a black powder coating or stainless steel as directed by the engineer. The door shall be secured by a key lock with no other fasteners visible.The graphic display shall be a black image on clear anodized aluminum or stainless steel. The graphic display can also include colors. The LED wiring shall be neatly harnessed to designated terminal blocks located in the annunciator backbox. The LEDs shall protrude through the aluminum or stainless steel making the LEDs visible at all times. A clear front pane shall render the LEDs and the image tamperproof. The manufacturer shall submit drawings for approval prior to fabrication. The graphic annunciator shall be Underwriters Laboratories listed. The annunciator shall be manufactured by the H.R. Kirkland Co., or approved equal.

MODEL NUMBERS

Model	Visible Display	Visible Display	Semi-Flush	Semi-Flush	Surface	Surface	Overall	Overall
	WIDTH	HEIGHT	WIDTH	HEIGHT	WIDTH	HEIGHT	WIDTH	HEIGHT
BGRA-GR	4.35	8.85	7.50	12.75	8.85	14.25	9.30	14.50
BGRB-GR	8.85	8.60	12.00	12.75	13.35	14.25	13.80	14.50
RSB-GR	7.80	9.80	12.00	14.25	13.50	15.75	14.00	16.00
RSC-GR	15.80	12.80	20.00	17.25	21.50	18.75	22.00	19.00
RSC-L-GR	12.80	15.80	17.25	20.00	18.75	21.50	19.25	21.75	Hinged on long side
RSD-GR	17.80	17.80	22.00	22.25	23.50	23.75	24.00	24.00
RSE-GR	23.80	17.80	28.00	22.25	29.50	23.75	30.00	24.00
RSE-L-GR	17.80	23.80	22.25	28.00	23.75	29.50	24.25	29.75	Hinged on long side
RSF-GR	35.60	23.60	39.88	28.00	41.18	29.38	41.63	30.00
RSF-L-GR	23.60	35.60	28.00	39.88	29.38	41.18	30.00	41.63	Hinged on long side
RSG-GR	46.60	34.60	50.80	39.00	52.20	40.40	52.75	41.00
RSG-L-GR	34.60	46.60	39.00	50.80	40.40	52.20	41.00	52.75	Hinged on long side
RSH-GR	73.00	34.00	N/A	N/A	79.00	40.00	79.50	40.50
