Directory Annunciators

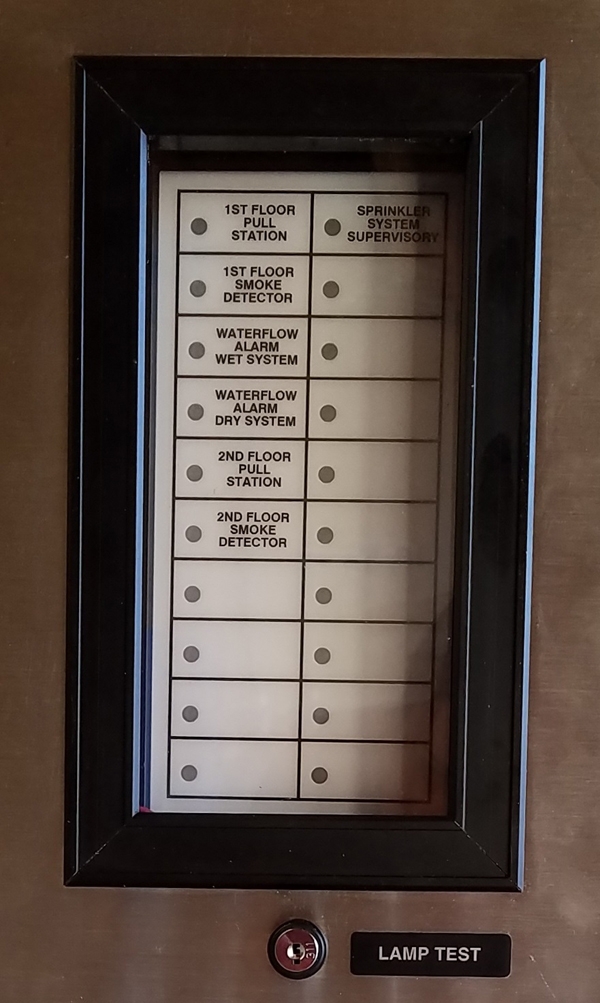

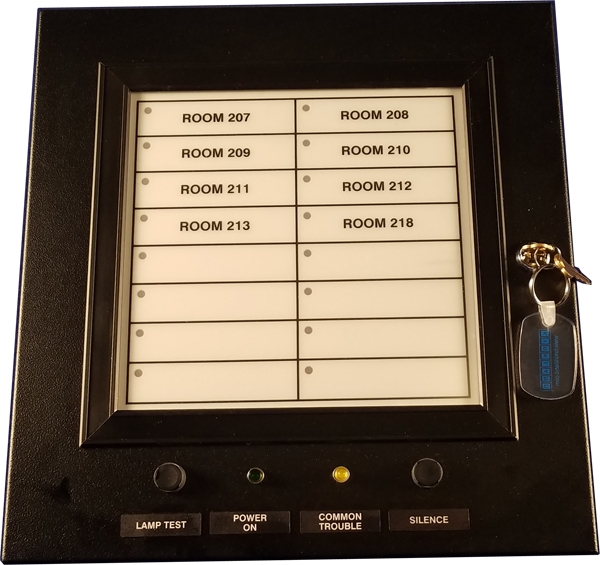

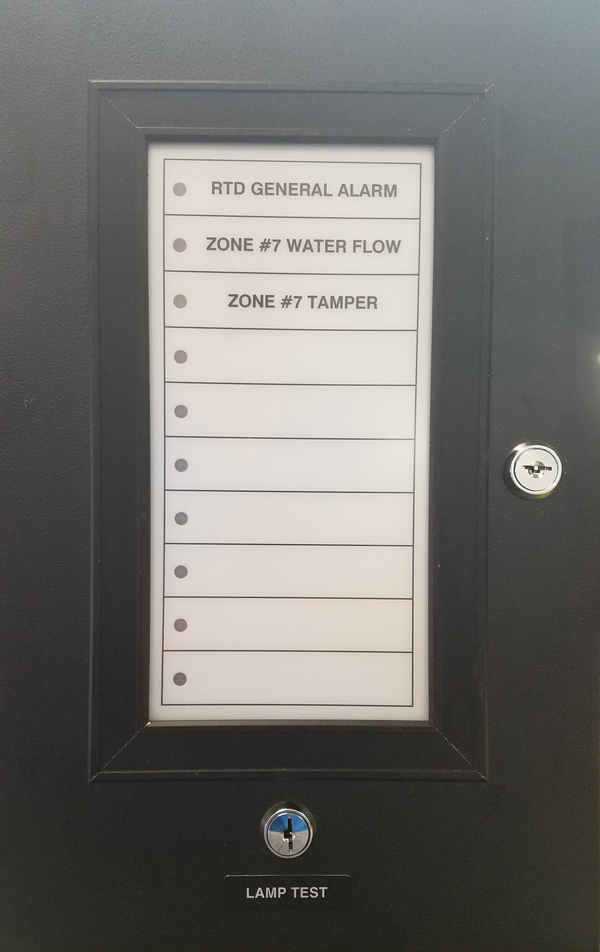

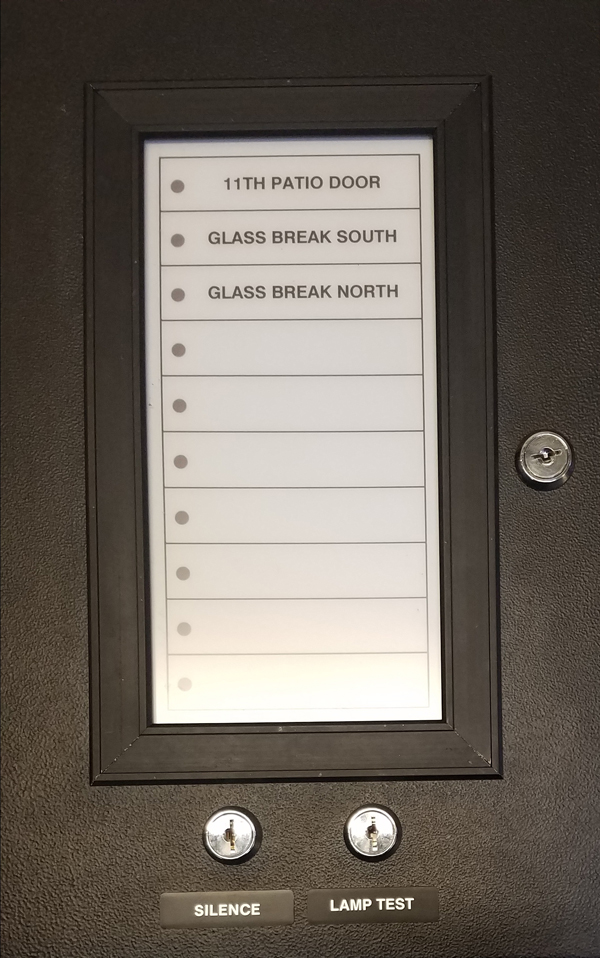

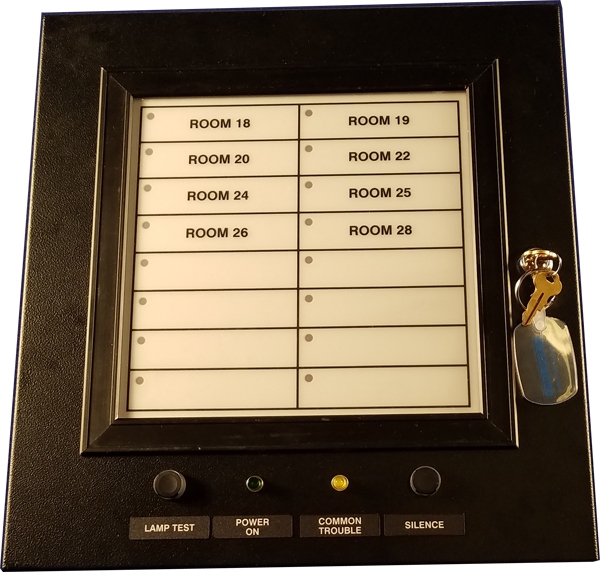

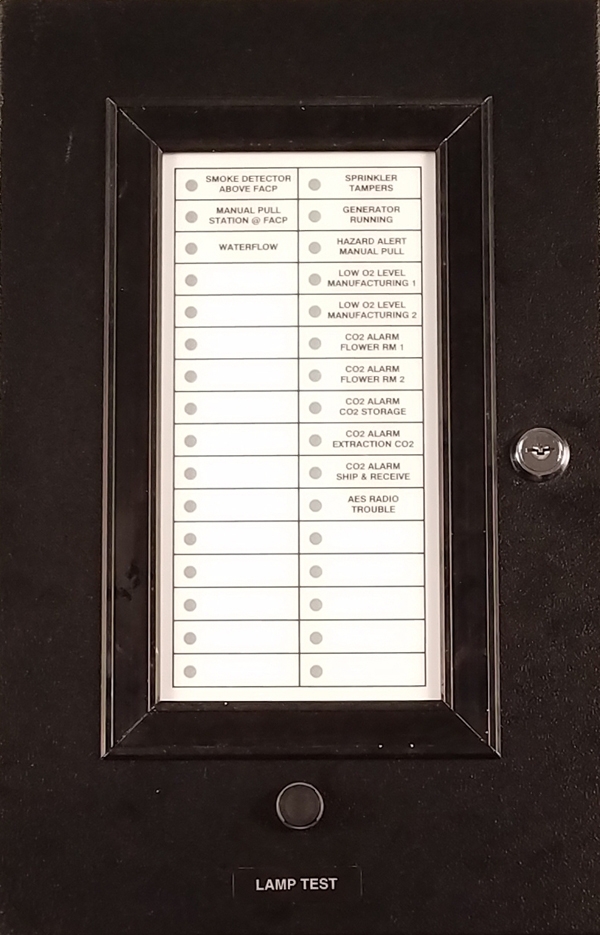

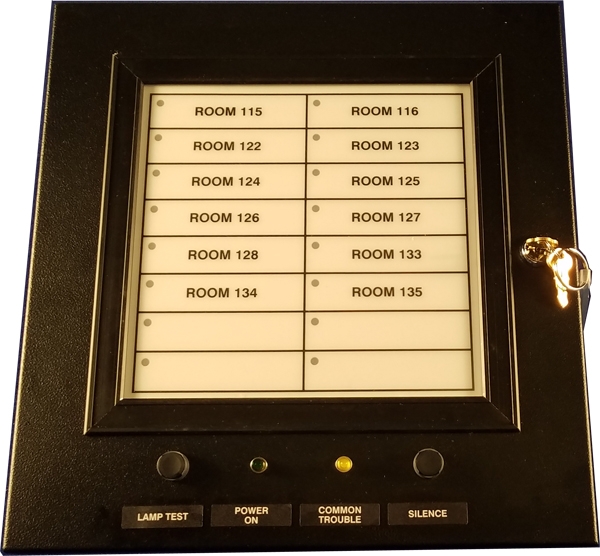

The Backlighted Annunciator is used for applications where the detail of the Graphic Annunciator is not required, and where it is necessary to see the alarm condition from afar. We mostly see the Backlighted Annunciator being used for Nurse Call applications. The Backlighted Annunciator has a grid style design. With the grid design, a cluster of white LEDs or incandescent lamps, are placed in each legend secton, and is accompanied with customer supplied text. In an alarm situation, the entire grid section will light up.

The main advantage of the Backlighted Annunciator is that an entire section lights up, and thus, it is easier to see.

Enclosures are constructed of cold rolled steel with fully welded and grounded seams and painted with a black powder textured coat for a truly finished appearance.
The grid/matrix can be removed and replaced easily and quickly, and is inexpensive.
The best delivery of finished product in the business…guaranteed!
Can be mounted indoors or outdoors. Please visit the Exterior Annunciator section if your application requires mounting it in an outdoor setting.

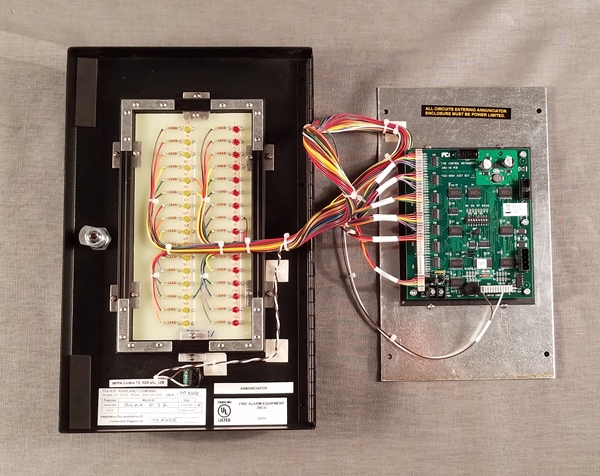

Can be wired directly to fire alarm lamp driver modules or hardwired to terminals.
UL and CSFM listed.

Material

Boxes: #16 Gauge Steel with a Black Textured Finish (Standard).
Door: #16 Gauge Steel with a Black Textured Finish (Standard), or #16 Gauge Stainless Steel with a #4 Horizontal Brush upon request.
Hinge: Concealed Stainless Steel located on the left side.
Fastener: #2171 Key change lock.

Backbox Depth

Semi-Flush: 3.50″
Surface: 4.75″

The annunciator enclosure shall be constructed of cold rolled steel with welded and ground seams for a finished appearance. The backbox shall be finished with a black powder coating. The annunciator door shall have a concealed stainless steel piano hinge and shall be finished in a black powder coating or stainless steel as directed by the engineer. The door shall be secured by a key lock with no other fastener visible. All key switches shall be mounted in the door trim. The display shall be a black image on a white background. Each tabular zone shall be annunciated by means of a single light emitting diode (LED). The LEDs shall be neatly harnessed to designated terminal blocks located in the annunciator backbox. A clear front pane shall render the LEDs and the image tamperproof. The graphic annunciator shall be Underwriters Laboratories listed. The annunciator shall be manufactured by the H.R. Kirkland Co. or approved equal.

Download Now

Information Required

Backbox Mounting: Surface or Semi-flush mount
Wiring: Hardwired – Please provide voltage and feed. Drivers – Please provide model number of FACP and driver model number
Grid: Blank Grid or Grid with printed nomenclature by Kirkland.
Options: Lamptest– Pushbutton or Key Switch Common Trouble– Trouble circuit to include LED, buzzer, and silence switch. Audible Alert– Buzzer circuit to operate from alarm inputs with common silence switch. Please advise if: Software Driven Hardwired Hardwired with subsequent alert Miscellaneous Switches– Switches for customers use. Explain or provide schematic. Stainless Steel Doors Power on LED

Typical Part Number

Download Now

MODEL NUMBERS

# of Zones	Model	Indications Arranged	Indications Arranged	Legend Area	Legend Area	Semi-Flush	Semi-Flush	Surface	Surface	Overall	Overall
		WIDTH	HEIGHT	WIDTH	HEIGHT	WIDTH	HEIGHT	WIDTH	HEIGHT	WIDTH	HEIGHT
16	BGRA-D-16	2.00	8.00	1.50	1.00	7.50	12.75	8.85	14.25	9.30	14.50
32	BGRA-D-32	2.00	16.00	1.50	.50	7.50	12.75	8.85	14.25	9.30	14.50
40	BGRB-D-40	4.00	10.00	1.50	.80	12.00	12.75	13.35	14.25	13.80	14.50
48	BGRB-D-48	4.00	12.00	1.50	.60	12.00	12.75	13.35	14.25	13.80	14.50
64	BGRB-D-64	4.00	16.00	1.50	.40	12.00	12.75	13.35	14.25	13.80	14.50
80	RSC-D-80	5.00	16.00	2.50	.70	20.00	17.25	21.50	18.75	22.00	19.00
100	RSC-D-100	5.00	20.00	3.00	.60	20.00	17.25	21.50	18.75	22.00	19.00
144	RSC-D-144	6.00	24.00	2.00	.40	20.00	17.25	21.50	18.75	22.00	19.00
154	RSC-D-154	7.00	22.00	1.50	.40	20.00	17.25	21.50	18.75	22.00	19.00
160	RSD-D-160	8.00	20.00	1.60	.80	20.00	22.25	23.50	23.75	24.00	24.00

Note:
The above list shows sample configurations. Configurations can be designed per customer’s specifications.
